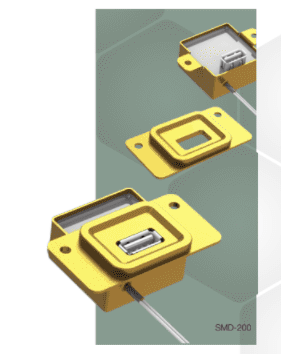

SmartDock

USB In-Seat Charger SMD 200

SkyDock™ USB-A mini Specifications

  • Main power typical current 0.1A at 28V
  • Main power typical current 0.8A at 28V
  • Maximum output current 2A at 5V
  • Reverse power input connection protection
  • Short circuit output protection’Thermal protection
  • Backlight USB Connector
  • Width 2.08 in
  • Depth 1.3 in
  • Height 0.8 in
  • Weight 0.05 lb
  • Wire length 6 in
  • Positive Wire – White
  • Negative Wire -White /Black
The SmartDock™ charges the latest portable electronic devices without the need for an external power outlet. As a DO-160 certified component, it satisfies the highest standards of the aerospace industry. The SmartDock™ is the ‘most compact and lightweight device of its kind on the market, and is extremely easy to install. It also protects itself and the charging device “against external short circuits” and power “surges”. ASD Inc. offers customization for the internal signature to charge special devices that may not recognize the default signature. The default signature is made for “Apple iPads, iPods, and iPhones” as well for most standard USB-charged devices such as music players, digital cameras, smartphones and tablets. A discreet backlight is also available inside the USB connector for night usage. The SmartDock™ is highly recommended for SkyPad™ owners as it has the necessary power to keep iPads charged during heavy use.


Avialable on Request:
DO160 QTR’s
Installation Instructions

The SmartDock™ faceplate offers more flexibility to the OEM for customized installations. Various plating options are available, allowing the SmartDock™ to seamlessly blend in with the aesthetics of the existing controls in the cabin. The SmartDock™ can also be ordered without any plating, enabling the OEM to custom plate them independently using the same plating company as the rest of the controls in the cabin.



Ordering Information:
SmartDock, USB In-Seat charger
PN: 908-2040-001
SmartDock Faceplate
PN: 908-2044-XXX where XXX is color plating information
