SkyDock™ Slim SKD 101 Specifications:

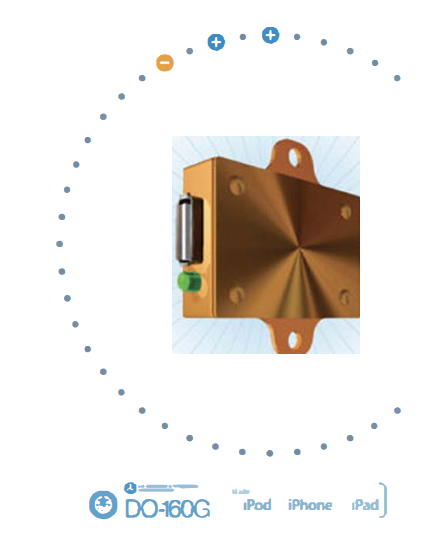

SkyDock FJ 101

The SkyDock Product line is DO160G Certified for Fix Wing, Flight Deck & Rotor-craft Installation.

Operating input voltage range: 13V – 30V / 5 amp max
Main power standby current: 0.1A at 28V
Max. efficiency: 85%
Max. output current: 2.7A at 4.75V to 5.25V

USB 2.0 data connection option
Max. input voltage: 32 voe / In-Rush 5 Amp

Protection

Self reset power surge

Input/output overvoltage

protection Static

Static protection to 600V
Reverse power / short circuit protection Battery full
charge auto power reduction Encapsulated,

waterproof circuit board Power ON Indicator light

Supports Apple Lightning™ USB requirement
MTBF: 300,000 hours
Dimensions: W1.94 in x 01.48 in x H0.64 in
Weight: 1.5 oz
Wire length: 12 in
Positive wire: White
Negative wire: White / Black
Design registered*
Patent pending*
