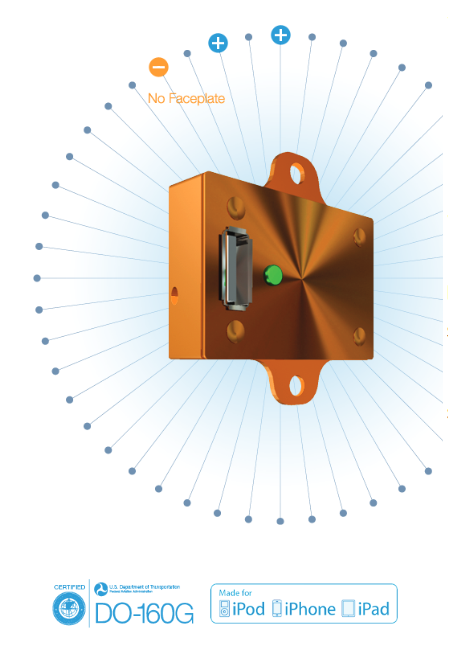

SkyDock FJ SKD-100 Single

SkyDock™ SKD 100 Specifications

  • Operating input voltage range: 13V – 30V / 5 Amp In-Rush
  • Main power standby current: 0.1A at 28V
  • Max. efficiency: 85%
  • Max. output current: 2.7A at 4.75V to 5.25V
  • USB 2.0 data connection option
  • Max. input voltage: 32 VDC / In-Rush 5 Amp
  • Self reset power surge
  • Input/output overvoltage protection
  • Static protection to 600V
  • Reverse power / short circuit protection
  • Battery full charge auto power reduction
  • Encapsulated, waterproof circuit board
  • Power ON indicator light (Optional)
  • Supports Apple Lightning™ USB requirement
  • MTBF: 300,000 hours
  • Dimensions: W1.94 in x D1.48 in x H0.64 in
  • Weight: 1.5 oz
  • Wire length: 12 in
  • Positive wire: White
  • Negative wire: White / Black
  • Design registered*
  • Patent pending*

Certification

The SkyDock Product line is engineered for aviation use and designed with rugged reliability. The SKD-100 model upholds Aerospace Devices, Inc.’s commitment to delivering certified and safe charging solutions for Fixed Wing, Flight Deck, and Rotorcraft applications.
