SKYDOCK PRO USB C 100-WATT CHARGING PORT SKD-505-00 SINGLE & SKD-505-01 DUAL 12VDC Min. to 32VDC Max.

Ruggedized Design , GO-GREEN, REDUCING E-WASTE Harsh Environment

The SkyDock Pro USB Type C Chargers, capable of providing up to 100W, with a maximum of 5A @20VDC. The output voltage is Negotiated by the device to be charged, the supported voltage outputs are 5, 9, 15, & 20VDC. 100-Watts of power to meet Next-Gen Advanced Charging Power demands with Superior Performance, 93% Efficiency, Fast & Save APD. The SkyDock Pro USB C is contributing towards "Go Green" Reducing E-Waste, empowering consumers to make more sustainable choices, contribute to preventing up to 22 million pounds of e-waste each year.

Universal & Roll Bar Mounting Brackets

Aerospace & Defense Review Annual Award for USB Port Chargers Design & Manufactures: “2024 USB Charging Plug & Devices Company of the Year"!

Industry & Gov. Testing is Great, Our #1 Test is to Pass Your Requirements or Abuse!

SINGLE PORT

PART DESCRIPTION: SKD-505-00 SINGLE REV.F

ORDER PN: 201-0003-C100 Rev.F

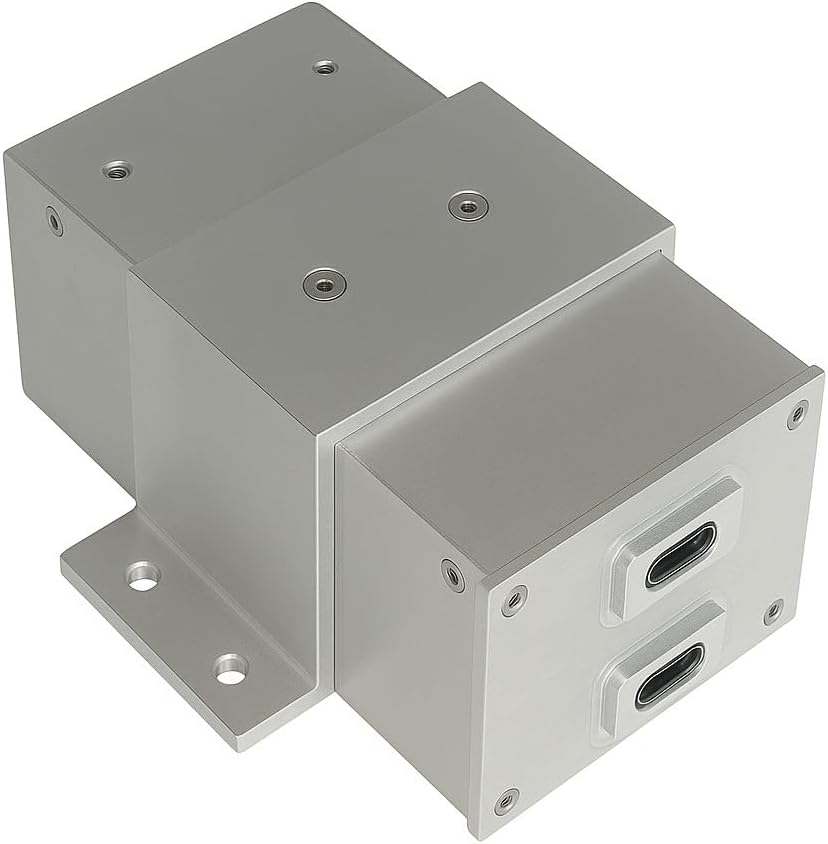

DUAL PORT

PART DESCRIPTION: SKD-505-01 DUAL REV.F

ORDER PN: 201-0003-C200 Rev.F

"INPUT POWER MATING CONNECTOR & BACKSHELL ORDER ONE EACH PER SINGLE OR DUAL PORT"

Mfg, Nor Comp Inc. Series: 680S

Input Power Connector PN#: 680S5W5203L201

Mfg, Nor Comp Inc. Series: 680S

Connector Back shell PN#: 979-015-030R121

MOUNTING AND BRACKET OPTIONS:

Pricing includes Universal or Straight Bracket We offer Under Seat / Roll Bar Mounts options for Custom Mounting Brackets, Face Plate Covers, bezels, as well as plating & surface finishing. Our In- house design team can supply 3D Printed Models to save time and reduce costs.

CERTIFICATIONS AND APPROVALS:

Design Data
Model Eligibility
Letter of Assist, Support Engineering Data for Airborne Parts Manufacturing QTP, UUT & QTR
ISO9001 Certification, AS9100 Manufacturing Facility.
Installation Manuals
DO160G Tested

OEM APPROVED MANUFACTURE:

Bombardier / Lear Aircraft: Approved Manufacture
Embraer S.A: Approved Manufacture,
Dassault Falcon Jet: SKD – FJ Approved and installed on Mfg. Airframes

Features

  • SkyDock Pro Universal & In-Seat Mounting included
  • Certified for Fixed Wing, Flight Deck & Rotor-craft.
  • Efficiency 93%
  • USB-C QC 3.0/4.0 Compatible.
  • Integrated 24V DC Protection on Protected HVD+, HVD-, HVCC1, HVCC2 Outputs
  • Over Voltage Input Protection /Under Voltage Input Protection
  • 12 VDC - Min to 32 Max
  • Over Current Voltage Output Protection
  • Resettable Fuse Input Protection
  • 5V Default Output for Non-Quick Charge Compatible Devices
  • Over Temperature Shutdown
  • Static Protection
  • Input Spike Protection
  • Dual Output Connectors USB-C and USB-A
  • Input Voltage Range of 5VDC-34VDC 5 AMP In-Rush
  • Input Current Range of 50mA Standby to 1.8A max
  • DO160G Tested
  • USB-C Output Voltage Ranges 5V/3A, 9V/3A, 12V/25
  • Output Power Max 100 Watts USB-C
  • Max Power 100W
  • Peak Efficiency: 92% to 93%
  • Single Size: 1.770 W X 0.825 H X 3.85 L
  • Weight: 5.0 oz (Estimated Weight)
  • Dual Size: 1.95 W X 1.29 H X 3.85 L
  • Weight: 6.8 oz (Estimated Weight With Universal Bracket)
  • Temperature Range: Operating -40C to +105C
  • Decompression: 50,000ft High Humidity Operational Environment
  • Stress Tested to 20g acceleration & 11m Sec 6g acceleration curve
  • DO160G QTP & QTR available upon request.
  • Charge one or two devices simultaneously at maximum power
  • Thermal Shutdown & Hysteresis
  • Current Limit Thresholds & Protection Mechanisms
